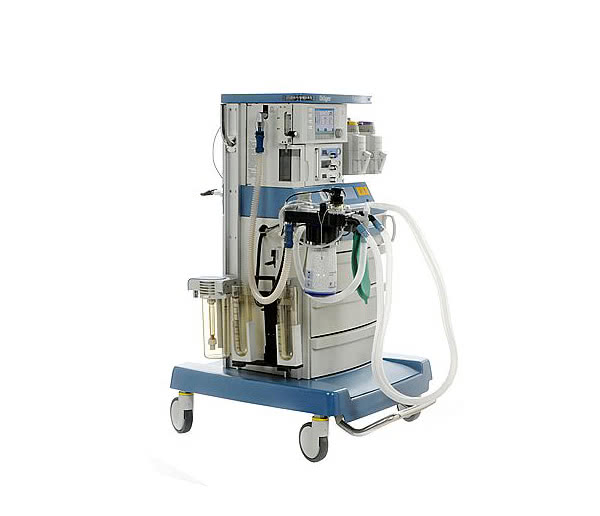

Increase the diagnostic capability of your MRI unit with the help of state-of-the-art ventilation in the Dräger Fabius® MRI anaesthesia system specially designed for use in MRI environments.
Fully certified for MRI
Specifically designed for use in magnetic environments, the Dräger Fabius MRI is certified for field strengths of up to 40 mTesla or 400 Gauss. This provides reliable ventilation with 1.5 and even 3 Tesla MRI systems.
Compact design, intelligent ergonomics
The Fabius MRI has a compact breathing system, COSY 2.6 which can be mounted on the left or right hand side of the unit, depending on the room layout. Mounted on a short, 8” arm to provide positioning flexibility, it simplifies use in an often cramped MRI environment. The Fabius MRI also gives you the option of using the Dräger CLIC disposable soda lime absorber canister for an easy dust-free soda lime canister exchange.
Electronic ventilator
The Dräger Fabius MRI incorporates a servo-controlled, piston ventilator that requires no drive gas. The piston is capable of delivering higher inspiratory flows than the traditional bellows ventilator, and provides a more accurate volume delivery.
High visibility alarms
The Fabius MRI is equipped with highly visible repeater LED optical alarms that alert caregivers in the central station to changing patient conditions.
Broad range of therapy modes
The Fabius MRI gives you access to a broad range of ventilation modes - including volume, pressure, pressure support and SIMV/PS - providing a maximum level of respiratory care regardless of the patient acuity level.
Standard operating philosophy
Because it uses Dräger’s uniform user interface, Fabius MRI is quick and easy to learn. All relevant information is displayed on a single, high resolution LCD color screen (6.5 inch diagonal).

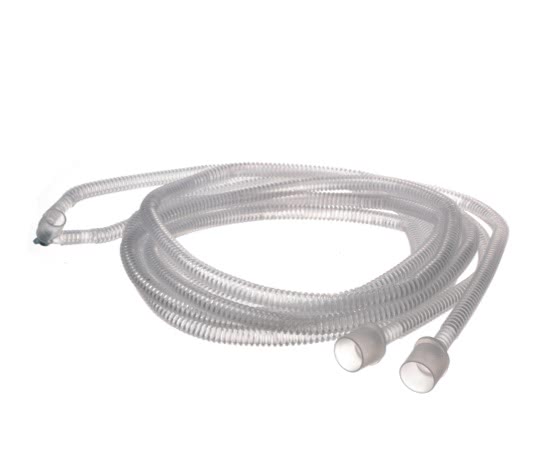

VentStar® MRI (N) 300
Disposable neonatal breathing circuit, consisting of 2 smoothbore hoses (Ø 10 mm), angled Y-piece with LuerLock.
Suitable for use in MRI environment.
Length: 300 cm (118 inch).
Latex free.
Spirolog® Flowsensor
Disposable breathing circuit, consisting of 2 smoothbore hoses, Y-piece and LuerLock elbow.
Suitable for use in MRI environment.
Length: 300 cm (118 inch).
Latex free.

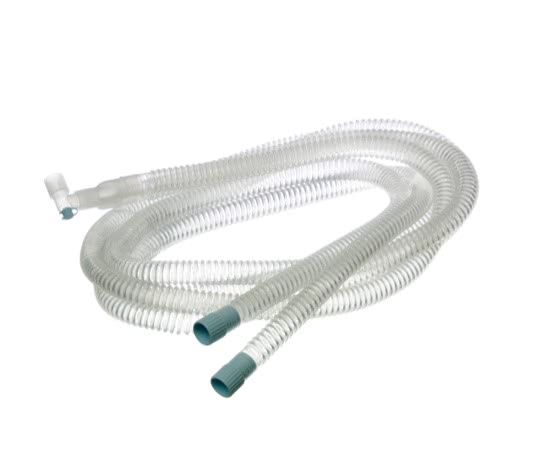

VentStar® MRI 300
Disposable breathing circuit, consisting of 2 smoothbore hoses, Y-piece and LuerLock elbow.
Suitable for use in MRI environment.
Length: 300 cm (118 inch).
Latex free.
VacuSmart® Gel
The VacuSmart Gel is a disposable cartridge with an integrated gelling agent for all Dräger Medical bronchial aspirators using 700 ml secretion jars. The gelling agent coagulates the bronchial secretion and prevents thereby the leakage e.g. in a case of disposal in a waste press.
